AH-X117-1201E-EU - Austin Hughes - IEC C13 x 20 & C19 x 4, Basic PDU, 16A, 230V, Single Phase, 0U, 3M Cord, PDU (AH-PV) 'AHV000201042203211' with IEC320 'C20' Plug


Description:
The InfraPower standard PDU is a Rack mount industrial grade PDU for general data centres and remote install sites. This PDU allows power distribution for upt 24 devices. The Infrapower basic PDU using a low cost Cat6 patch cord allowing access control and monitoring via a single IP address over an Ethernet network. Note the standard colour is black.

Features:
Lockable IEC Outlet Model Available on request

Individually Fused Outlet Model

Local Meter provided

Tool-less Mounting for Vertical PDU

0U / 1U / 2U Form Factors available

Hydraulic MCB / Resettable Fuse Option

Voltage 230V / 208V / 110V

Operating temperature range -5C to 60C

Outlet Types : IEC C13, IEC C19, Lockable, NEMA, UK, SCH Available

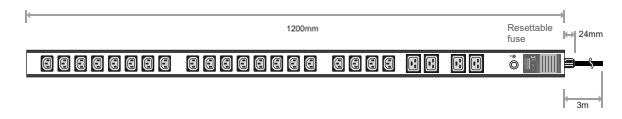

DIAGRAM

Specification:
Electrical

Input Rating: 16A, 230V
Inlet: 16A IEC320 C20 plug
Cordset: 3 meter 1.5mm sq. H05V V-F cordset
Protection: 16A resettable fuse or 16A hydraulic MCB x 1
Circuit Details: Output 16A max. C13 #1-20 + C19 #C1-C4

Physical

Dimension: 60 (W) x 60 (D) x 1200 (H) mm
Material: Extrusion
Color: Black

Environmental

Operating Temperature: -5 to 60
Storage Temperature: C -25 to 65 C
Operating Altitude: 0 to 2,000m
Storage Altitude: 0 to 15,000m
Humidity: 8 to 95% RH, non-condensing

Compliance

EMC Compliance: FCC & CE certified
Safety Compliance: CE / LVD certified
Environment Compliance: RoHS2 & REACH
