Raritan DSX2 - Serial Console Servers


*EOL Notice: Product changes to ZPE models (Legrand Group)*





Specialist Distributor: Mediatron Ltd.  |  Contact: Sales@mediatron.co.uk  |  +44 (0) 345 899 8998



End-of-Life Announcement:
End of sale on December 31st, 2025  |  End of support on December 31st, 2027  |   (As announced by Raritan USA)



This trusted solution remains widely used and supported for both data centers and remote sites, with models from 4 to 48 ports in 1U. As you known the DSX2 is compatible with Raritan’s CommandCenter Secure Gateway (CC-SG) for centralized management and is now also manageable via the ZPE Nodegrid Manager System, ZPE also offering 4G/5G access with added flexibility for existing and new customers. As a secure, reliable, and Java-free serial-over-IP console server, the DSX2 still provides remote access to serial devices like servers, PDUs, and network gear. All models include dual power inputs, dual LAN, and optional modems with AC or DC power options. ZPE offers multifuction products for smaller, edge deployments, and ehnaced OOB management the ZPE's Bold SR and Gate SR ranges offer compact, multifunction alternatives — with 4G/5G, and Wi-Fi options.



We provide full support, product integration advice, and deal registration for both Raritan and ZPE Systems.

& Maintenance contracts for DSX2 can extend beyond Raritan’s official support date.



Speak to us about migration paths to ZPE Nodegrid Serial Console models and integration with your existing CommandCenter systems

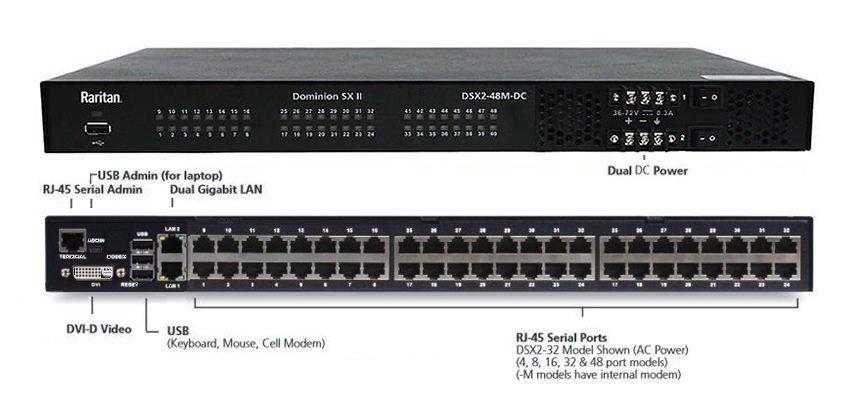

Raritan DSX2 - Serial Console Controller models

Available until Dec 31 2025

Raritan Serial console controllers (AC dual Powered)

The most popular for Data Centre device control

DSX2-4

DSX2-8

DSX2-16

DSX2-32

DSX2-48

Raritan Serial console with Modem support addition (AC dual powered)

Extra access methods for more redundancy remote device control

DSX2-4M

DSX2-8M

DSX2-16M

DSX2-32M

DSX2-48M

Raritan Serial console controllers (DC Powered)

Specialist environments and telecomms device control

DSX2-8M-DC

DSX2-32M-DC

DSX2-48M-DC

DSAM

Adding Extra Serial Ports access from existing IP KVM Switches

DSAM-2

DSAM-4

Raritan Serial RS232 Cabling and Adaptors

Serial Cables

All Rollover

Raritan CRLVR


Serial Adaptors

Nulling Serial D Adaptors

Raritan ASCS Adaptors














DSX2 - Support Services

Extended Warranty - (Until 31/12/2027)

Buy additional years of product warranty over the standard 2 year

*Available for products in warranty until Dec 2027*



CALL FOR DETAILS

24/7 Support and Onsite Maintenance Services

HARDWARE & SUPPORT ON TIME GUARANTEED FULL COVER



UK - Europe ARC - Global ARC Services available

* THIS SUPPORT IS AVAILABLE BEYOND -  2027



CALL FOR DETAILS



System Enterprise management - Command Center



Dominion KVM and Serial appliances, including DSX II, KX III and KX4-101, integrate with Raritan's CommandCenter Secure Gateway. With the CommandCenter management system, administrators can manage multiple Raritan devices. Users can access hundreds or thousands of computer and networking devices from a single, integrated system. If you own five or more Raritan appliances, users generally select CommandCenter for centralized management and access. However Raritan Command Center cannot manage the new ZPE serial console products, now users can also consider the ZPE Nodegrid Manager system which can manage both.



We offer advice and assistance to acheive the best system setup. Installation assistance and consultancy services if required.














From December 31st 2025 - DSX2 Sales End.

We will continue Support for existing DSX2 Units.



Raritan DSX2 to ZPE Systems Nodegrid



End-of-Life                              Replacement
RARITAN DSX2                ZPE Systems Nodegrid / NSCP / BOLD SR
DSX2-4 ZPE-BSR-24-BASE
DSX2-4M ZPE-BSR-24-AM
DSX2-4 + 4G ZPE-BSR-24-4G
DSX2-8 ZPE-BSR-24-BASE
DSX2-8M ZPE-BSR-24-AM
DSX2-8 + 4G ZPE-BSR-24-4G
DSX2-8M-DC ZPE-BSR-24-BASE (Unit is 12V DC)


Serial Console for Edge - (Serial Console for Edge 8 Port Serial Console with optional built-in 4G cellular)



  DSX2-16                                 NSCP-T16R-CORE-DAC
  DSX2-16M ZPE-NSCP-T16R-CORE-DAC-AM
  DSX2-16M-DC ZPE-NSCP-T16R-CORE-DDC-AM
  DSX2-16 + 4G ZPE-NSCP-T16R-CORE-DAC-5G
  DSX2-32 NSCP-T32R-CORE-DAC
  DSX2-32M ZPE-NSCP-T32R-CORE-DAC-AM
  DSX2-32M-DC ZPE-NSCP-T32R-CORE-DDC-AM
  DSX2-32 + 4G ZPE-NSCP-T32R-CORE-DAC-5G
  DSX2-48 NSCP-T48R-CORE-DAC
  DSX2-48M ZPE-NSCP-T48R-CORE-DAC-AM
  DSX2-48M-DC ZPE-NSCP-T48R-CORE-DDC-AM



^ Serial Console w/ optional Built-in Analog or 4G Modem (Serial Console w/ optional Built-in Analog or 4G Modem 16, 32, 48 Port)

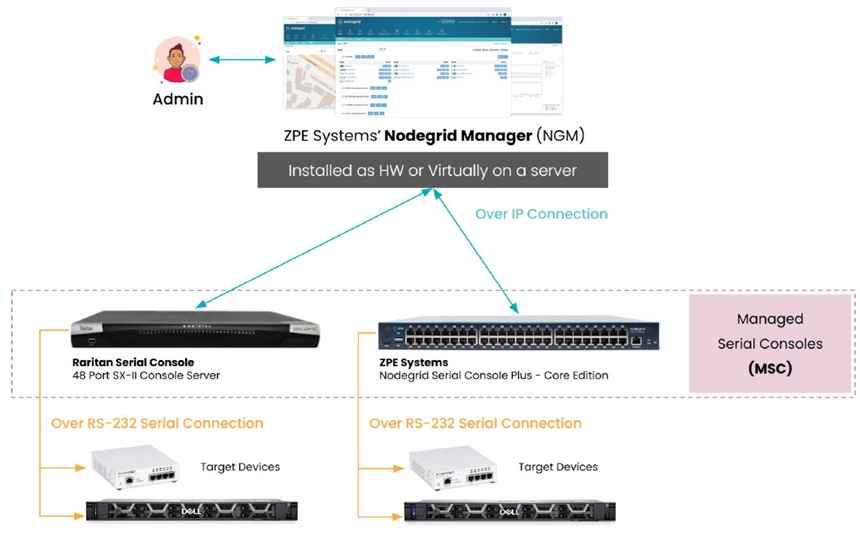

Central Management with ZPE Systems' Nodegrid Manager

Both Raritan & ZPE serial consoles and their target devices can be accessed from a single management system







ZPE Systems' Nodegrid Manager is able to manage Raritan and ZPE Systems brands ofserial consoles and target devices under them:



• Enumerate the serial ports

• Show target devices

• Upgrade/downgrade of firmware (roadmap)

• Backup/restore config file (roadmap)










Technology Questions:



Q: Are the serial port pin-outs compatible between Raritan Dominion SXII and Nodegrid Serial Console Plus Core Edition?

Yes, Raritan Dominion SXII and Nodegrid Serial Console Plus - Core Edition share the same serial port pin-out.

Q: Are the serial port pin-outs compatible between Raritan Dominion SXII and Nodegrid Serial Console Plus Core Edition?

Yes, Raritan Dominion SXII and Nodegrid Serial Console Plus - Core Edition share the same serial port pin-out.

Q: Can I manage ZPE Systems devices with Command Center?

No, you cannot manage ZPE devices with Command Center. Customers can use Nodegrid manager to access both ZPE devices, Raritan devices and other 3rd party devices.






To arrange a meeting to discuss these changes and how they may effect your customer please contact your

Mediatron Account Manager or email sales@mediatron.co.uk
