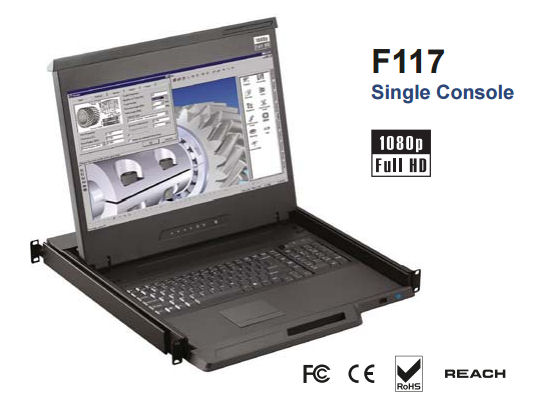

F117e-EU Austin Hughes F Series KVM Drawer 1U 17" Full HD 1920 x 1080P, 17” LED, VGA DVI Output Keyboard,TP Mouse, Combo, 1 x CX-6A ( F117e_U )


Description:
CyberView 1U Next Generation F Series with Touch Pad Mouse Version. The F series 1U Next Generation LCD Key drawer is available with a 17 " SAMSUNG 1920 x 1080 Class A LCD panel, the rack mount drawer ships as standard with HDMI + VGA and USB (Combo) connectivity and with touchpad in most European keyboard language layouts. The drawer is an enhanced version of the highly popular RKP & N series with improved aesthetics, a new front panel, single or one man installation rails and a new keyboard with standard numerical pad and the mouse module to the lower centre of the keyboard

Features:
Benefits
1U 17" LCD console drawer
1920 x 1080 native resolution / 16.7M colors ( 8-bit )
HDMI + VGA video input / USB KB / MS
Ideal for open rack / short depth rack
104-key keyboard with either touchpad or trackball
One Man installation design
Enhanced aesthetics with new molded front panel and 2-point lock
2-year standard warranty ( upgradable up to 5 years

Specification:
Console Port
Video input
VGA console 6ft cable : CB-6A
KB / MS
DVI-D console 6ft cable : CX-6A
VGA DVI

CX-6A

Drawer end : DB-15 + USB type A x 2
Server end : DB-15 + USB type A x 2
USB interface
Drawer end :HDMI + USB type A x 2
Server end : HDMI + USB type A x 2



LCD Panel
Panel size ( diagonal )
Response time ( ms )
Dot pitch ( mm )
300
Contrast ratio ( typ. ) 1000 : 1
16.7 M, 8-bit
89/89/89/89
25
0.1989
Native resolution
Brightness ( cd/mē )
Colors
Viewing angle ( L/R/U/D )
Display area ( mm )
Surface treatment
381.888H x 214.812V
Anti-glare, Hard-coating
3H
LED
MTBF (hrs) 15,000
Surface hardness
Backlight type
1920 x 1080
17.3”
