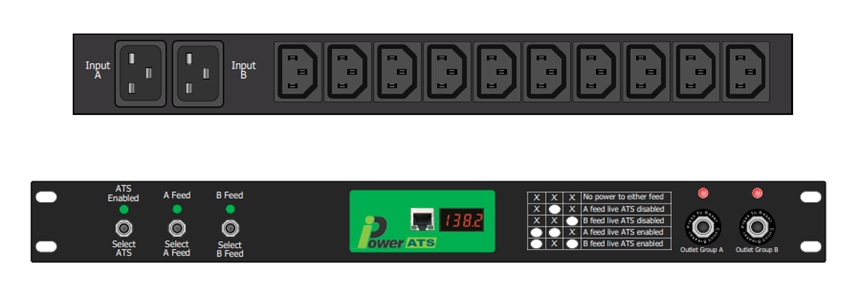

IP-AT-001-23B-16A - iPower ATS - Auto Transfer Switch, 2x 16AC20 Input, 10x C13 Output, with thermal trip (ATS)

iPower ATS - AT-001-23B

Description:
THIS PRODUCT VERSION IS CURRENTLY UNAVAILABLE - PLEASE CALL FOR AN ALTERNATIVE PRODUCT MODEL.

NEW PRODUCTS WITH NEW FEATURES AND COMPONENTS TO BE CONFIRMED BY MANUFACTURER


iPower ATS (Automatic Transfer Switch) provides reliable and precise management of primary and secondary AC power feeds for equipment with a single power connection. When connected to separate feeds the ATS provides automatic or manual selection of either maintained incoming single-phase supply.

The ATS can be remotely managed using the proven iPowerTM platform, with clear and precise on board instructions on setting up parameters and creating alerts. From the internal GUI, the user can view and control the selected feed, as well as monitoring the status of the second supply. In addition, the iPower ATS has a powerful 1% tolerance energy meter providing reports and alarms for a range of energy metrics including: Peak Amps, Peak Volts, Volts AC, Amps AC, VA, Frequency, Watts, Power Factor, Internal Temperature & kWh.

Features:
• iPower ATS is a new generation intelligent Automatic Transfer Switch, that exceeds the industry standard 21ms transfer time and comes with remote management and analytical tools, to put you in control of your power source infrastructure.

• iPower ATS has an easy-to-use HTML graphical interface, with the ability to set SMS and Email alarms for all critical parameters.

• iPower ATS will work in conjunction with other iPower products to create a fully flexible monitoring system allowing for individual racks to have switching only, or switching with supply management, rack security and environmental capabilities.

Specification:
Manufactured in accordance with BS EN IEC 62368-1:2020+A11:2020

Input Voltage: 220-240V 50/60Hz
Output Voltage: 220-240V 50/60Hz
Input Current: 16A or 32A
Output Current: 16A or 32A
Protection: Overcurrent protection on outlets
Switching speed: >8mS <15ms L1 plus N
Operating Temp: -10° to +45°C

(Has internal temperature monitoring)

WEEE: Compliant
RoHS: Compliant
CE: Compliant
UKCA: Compliant





Please note: These units are (BTO) built to order non returnable unless faulty. Made for set function only.
