SPS-U5P - SmartAVI - Seamless Presentation Switcher, Inputs: 3× HDMI, 1× DP, 1× USB-C, Outputs: HDMI, CAT5 Tx, 3.5 Audio, 4K@60, Multiview (PIP/PBP/Quad), Seamless/Fast Switching

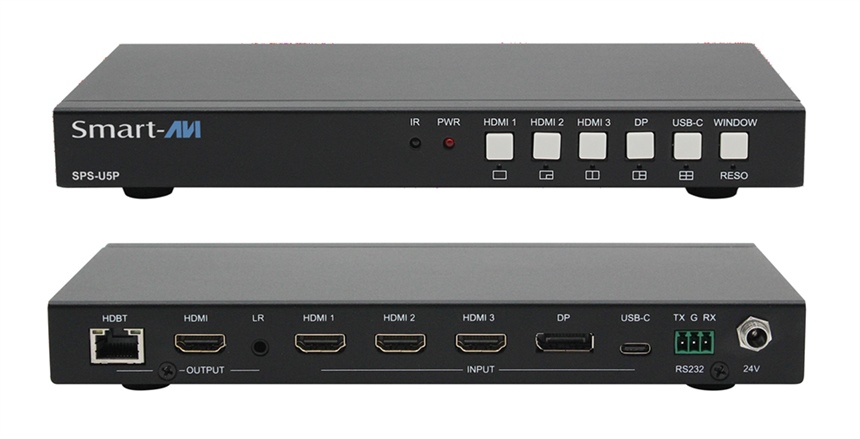

SPS-U5P Front & Back.

Description:
Seamless Presenter Switching for Smarter Meetings

The SPS-U5P is a 5-input presentation switcher built for presentation and conference room systems that require simple source selection and multi-source display. It supports HDMI, DisplayPort, and USB-C inputs, allowing users to connect laptops, desktop computers, and other AV devices and display them on a single screen.

The SPS-U5P supports resolutions up to 4K60 and offers several Multiviewer display modes including Single, PIP, PBP, 3-Window, and 4-Window layouts through RS-232 commands. A mirrored extended output allows video to be transmitted to a remote display over category cable while maintaining high-resolution signal quality.

Features:
• Inputs: 3x HDMI, 1x DP, 1x USB-C (video only).
• Outputs: 1x HDMI, 1x CAT5 Transmitter, 1x 3.5mm L/R output Support HDMI 2.0, HDCP 2.2, and video resolutions up to 3840×2160@60
• Support 5 categories of Multiview modes: SINGLE, PIP, PBP, 3xWIN, and 4xWIN
• Seamless switching on single window display mode; fast switching on non single window display modes
• Extensive EDID and HDCP handling.
• Support volume control and independent audio selection. Support LPCM, AC3, DD+, DTS, and DTS-HD, up to 7.1 audio channels
• Provides 24V/10watt PSE (POC) for remote CAT5 Transmitter receiver power supply
• CAT5 Transmitter length up to 70m @1080p, or 40m @4K

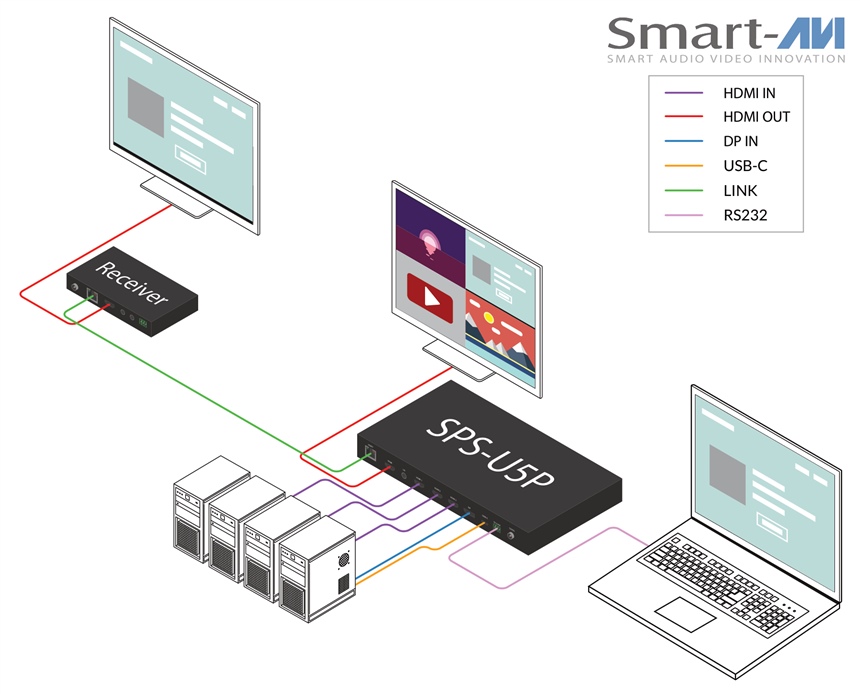

SPS-U5P Diagram

Specification:
VIDEO
Input ports 3x HDMI, 1x DP, 1x USB-C (video only)
Output ports 1x HDMI, 1x CAT5 Transmitter, 1x 3.5mm LR audio
Format HDMI
Maximum Pixel Clock 594 MHz
Resolution & Refresh Rate Up to 3840 x 2160 @ 60 Hz
Color Mode 24-bit
DDC 24 volts
Color Capability 24-bit True Color (8-bits per channel)
Chroma Sampling 4:4:4 (full color), 4:2:2, or 4:2:0
Input Equalization Automatic
Data Rate 1.65 Gbps per color
EDID Support Full emulation & preloaded profiles
Band Width 594MHz (18Gbps), HDMI 2.0, HDCP2.2

AUDIO
Audio Format LPCM, AC3, DD+, DTS, DTS-HD Up to 7.1 channel
Impedance 600 Ohm
Frequency Response 20 Hz to 20 kHz
Nominal Level 0-1.0 V
Common Mode Rejection at 60 dB

CONTROL
Front Panel Buttons (SELECT audio/video source)
RS-232 Via serial @115200bps

OTHER
Power Supply 24V/1A ,14W max
Operating Temperature 0 to +40°C (+32 to +104°F)
Operating Humidity 10 to 70 % RH (non-condensing)
ESD Air: ± 8KV, Contact: ± 4KV
Dimensions 100″W x 22.5″L x 25″H mm
Mass (Main Unit) 0.75kg

PACKAGE CONTENT
Part No. SPS-U5P-S
Description 5-port Seamless UHD Video Switcher with Multiviewer Includes: [SPS-U5P & PS24VDC1A]
Receiver Optional
