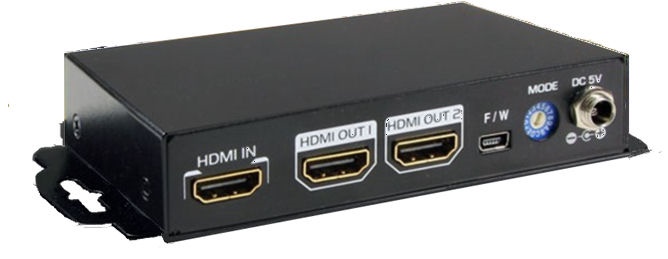

VSP-1X2HDMI-4K60 Rose HDMI HD Video Splitter 2-port Video Splitter, HDMI 4K@60Hz and 3D video ( HDMI Splitter ) AV Splitter

Description:
HDMI Video Splitter is ideal for use in classrooms, boardrooms, trade shows and exhibition displays, in fact anywhere where you need to easily distribute a 4K video signal across multiple monitors.The product supports HDMI video up to 4K@60 frames per second, and delivers up to 10.2Gbps video bandwidth. It's very simple to set-up and operate, just connect the HDMI input/output cables and power on the Video Splitter for a stunning HD video presentation.

Features:
Distributes a single HDMI video signal to multiple displays
Three models with either 2, 4, or 8 HDMI outputs
HDMI 2.0a compliant
HDCP 2.2 and 1.4 compliant
Video capability 4K2K@60 4:4:4 8bits and HDR 4K2K@60 4:2:0 10bit
Video bandwidth: 18Gbps
Video supports all 3D modes, xvYCC, x.v.Color, and Deep Color
Audio support includes Dolby Digital, DTS-HD, and Dolby TrueHD audio
Rotary dial to setup built-in EDID or EDID learning from display
Mini-USB connector to update firmware
Cascading feature to increase number of output displays
Built-in surface mounting bracket

Specification:
Dimensions - (W x D x H) 2-port: 4.4" x 2.5" x 1" (113 x 62.5 x 25 mm)

Weight - 2-port: 0.2 lb (0.463 kg)

Power - 90-240 VAC 50-60Hz
External adapter, +5VDC / 2-port: 10W

Resolution - HDMI 2.0a compliant
HDMI: 3840x2160: 24-bit RGB 4:4:4
HDMI: 3840x2160: 36-bit YCbCr 4:2:0


Distance
Video: 10 feet (3m)

Connectors
Video Input: HDMI Type A female
Video Output: 2, 4, or 8 HDMI Type A Female
Power: Screw-in barrel jack

Controls
Power: Red LED
Video ready: Green LED
Rotary Dial: EDID mode

Environment
Operating temperature: 32°F–104°F (0°C–40°C)
Storage temperature: -4°F–140°F (-20°C–60°C)
Relative humidity: 20%–90%, non-condensing
