7338221 - RITTAL - Early fire detection system EFD III

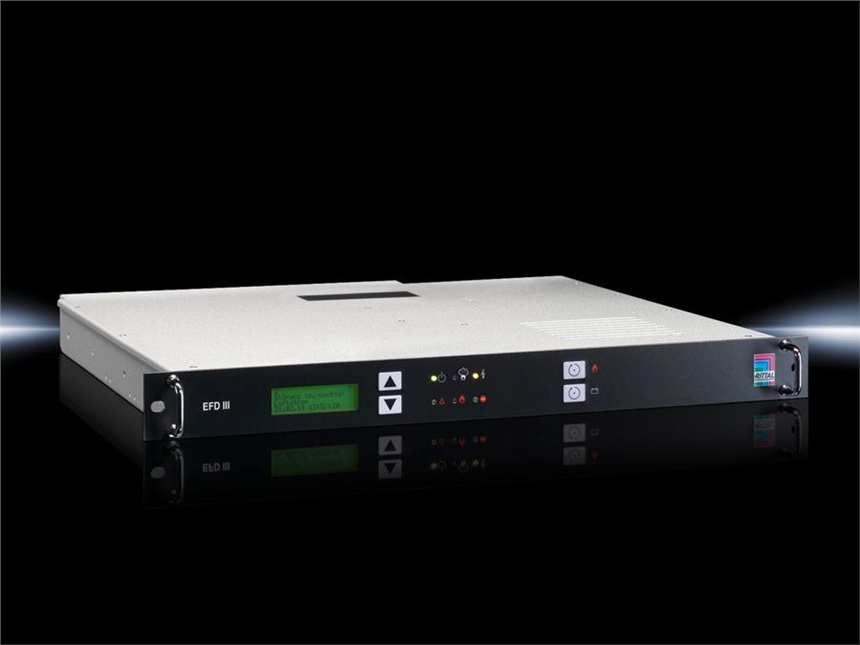

The EFD system is a compact 482.6 mm (19"), 1 U early fire detection system with active smoke extraction system.

Description:
The EFD III early fire detection system includes the smoke extraction system in a 482.6 mm (19") subrack with just 1 U. An integral fan continuously extracts air from the area being protected via a system of pipes. The air drawn in passes two fire detectors. If smoke is detected, the highly sensitive detector will emit a pre-alarm, while the second detector will activate the main alarm. The fire detectors are permanently monitored for correct functioning by the evaluation and control electronics on the control card.

Features:
• Early fire detection
• 482.6 mm (19") rack mount with just 1 U
• Tested by VdS Schadenverhütung GmbH
• CAN bus interface to the CMC III monitoring system
• Floating relay outputs (pre-alarm/main alarm/collective fault)

Specification:
Interfaces

4 x/3 x relay outputs for alarms and faults (terminals/RJ12 jacks)
1 x/1 x input for door contact switch (terminal/RJ12 jack)
2 x CAN connections for master-slave networking
3 x connection (external alarm/manual call point/tank and fill level)
1 x voltage output for DET-AC slave III (24 V DC max. 500 mA)
1 x USB
2 x CAN bus interfaces to CMC III (max. 16 on PU/4 on PU Compact)
Uninterruptible mains electricity operation
approx. 4 h

This system is designed solely for use in closed, non-accessible enclosure systems.

Display

Plain-language display with 6 LEDs

Sensors

Optical smoke detector (sensitivity: approx. 3.5%/m light obscuration)
Optical smoke detector HS (sensitivity: approx. 0.25%/m light obscuration)

Dimensions

Width: 482.6 mm
Height: 44 mm
Depth: 490 mm

Operating temperature range
10 °C...40 °C
Storage temperature range
-20 °C...65 °C
Storage temperature range of batteries
-15 °C...40 °C
Relative humidity (non-condensing)
96 %

Rated operating voltage
100 V - 240 V, 1~, 50 Hz/60 Hz
Air flow monitoring
approx. ±10% of total airflow

Net weight
14 kg
Gross weight
15 kg
PCF per pack (cradle-to-gate)
57.2 kg CO2 eq (Cat B)

Note on PCF category
Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared
Customs tariff number
85311095
EAN
4028177699328
ETIM 9
EC002685
ECLASS 8.0
40040104
Product description
DK EFD III, Early fire detection including smoke extraction system, Designed solely for use in closed, non-accessible enclosure systems, 482.6 mm (19") rack mount, 1 U
