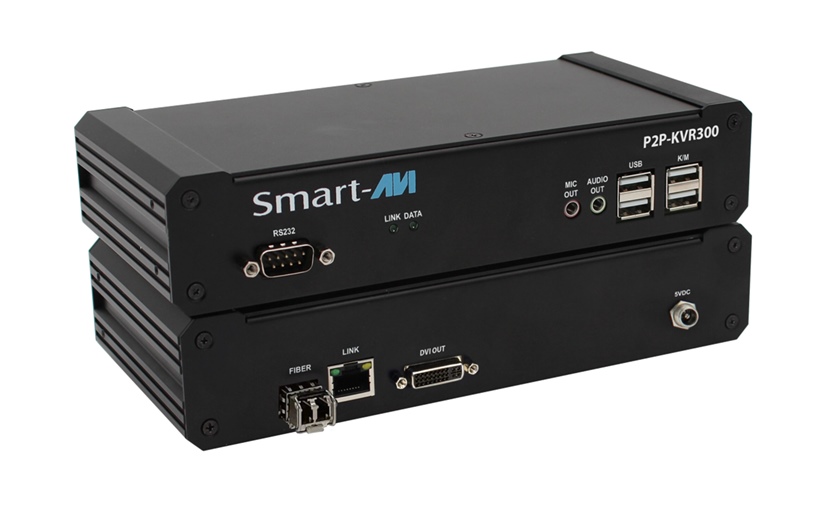

P2P-KVR300 - SmartAVI - Single Head DVI KVM-Over-IP Extender/Matrix Switch, CATx + Fiber, DVI Receiver (P2PKVM Series)

P2P-KVR300 - Single Head DVI Receiver via CATx + Fiber

Description:
DVI KVM-Over-IP Extender/Matrix Device – Single Head, CATx + Fiber Extend, control, and manage your DVI-based workstation over IP with the P2P-KVR300. Supporting flexible Direct, Matrix, and SaviGate modes, the P2P-KVR300 adapts to your installation needs — from simple point-to-point extensions to full multi-user managed environments — over CATx or Fiber.

Features:
• Supports DVI video up to 4K @ 30hz or 1080p @ 60hz
• Transparent USB 2.0 extension for peripherals
• Analog audio and rs-232 passthrough
• Selectable direct, matrix, and savigate modes via web interface
• Savigate gateway support for centralized management (sold separately)
• Up to 100m over catx / 10km over fiber
• Ultra-low latency jpeg2000 compression
• Plug-and-play installation
• Edid learning and management

P2P-KVR300 Diagram

Specification:
Video (1) DVI (female)
Max Resolution 1920 x 1080 @ 60 Hz
USB (4) USB Type A
Audio (2) Stereo 3.5 mm (female)
RS-232 DB9 (female)
Transmission RJ45 and/or SFP Fiber
Control LEDs
Power 5V DC, 2A
Dimensions 8.5” W x 4” L x 1.8” H
Approvals UL, CE, ROHS Compliant
Operating Temp. -4 to +140°F (-20 to +60°C)
Operating Humidity 20 to 80% (no condensation)
Storage Temp. -4 to +140°F (-20 to +60°C)
Storage Humidity Up to 95% (no condensation)
Compliance FCC (Class A), CE (Class A)
ICES-003
Env. compliance RoHS2 (CE)
Support Warranty 1-year
