Partner Manufacturers - Product Information

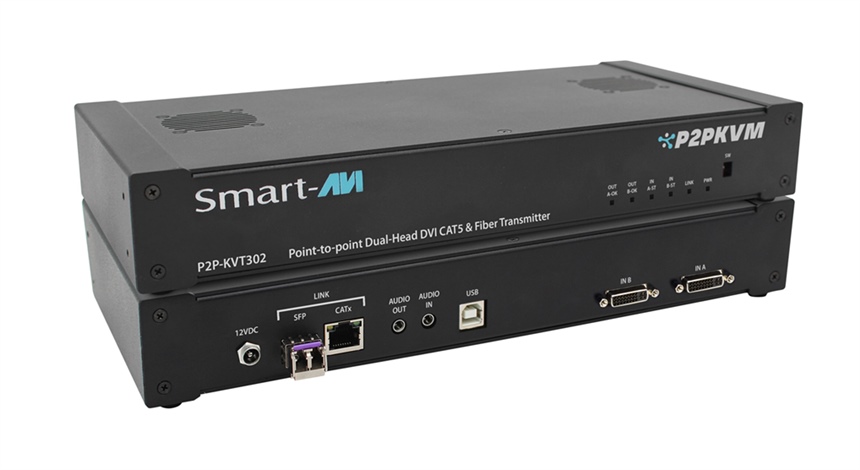

P2P-KVT302 - SmartAVI - Point to Point Dual-Head DVI CAT5 & Fiber Transmitter, KVM Matrix, & KVM Extender with USB 2.0, Audio, and RS233 (P2PKVM Series)

P2P-KVT302 - Dual Head DVI-I CAT5 & Fiber Transmitter

Description:
Point-to-point Dual-Head DVI-I CAT5 & Fiber Transmitter with USB 2.0, Audio and RS232 Extend, control, and manage your DVI-I-based workstation over IP with the P2P-KVT302. Supporting flexible Direct, Matrix, and SaviGate modes, the P2P-KVT302 adapts to your installation needs from simple point-to-point extensions to full multi-user managed environments over CATx or Fiber.

Features:
• Supports DVI video up to 4K @ 30hz or 1080p @ 60hz
• Transparent USB 2.0 Extension For Peripherals
• Analog Audio And Rs-232 Passthrough
• Selectable Direct, Matrix, And Savigate Modes Via Web Interface
• Savigate Gateway Support For Centralised Management (Sold Separately)
• Up To 100m Over Catx / 10km Over Fiber
• Ultra-Low Latency Jpeg2000 Compression
• Plug-And-Play Installation
• Edid Learning And Management

P2P-KVT302 Diagram

Specification:
Video (2) DVI-I (female)
Max Resolution 1920 x 1080 @ 60 Hz
USB (1) USB Type B
Audio (2) Stereo 3.5 mm (female)
RS-232 DB9 (female)
Transmission RJ45 and/or SFP Fiber
Control LEDs
Power 5V DC, 2A
Dimensions 8.5” W x 4” L x 1.8” H
