P2P-KHR300 - SmartAVI - Single Head HDMI KVM-Over-IP Extender/Matrix Switch, CATx + Fiber, HDMI Receiver (P2PKVM Series)

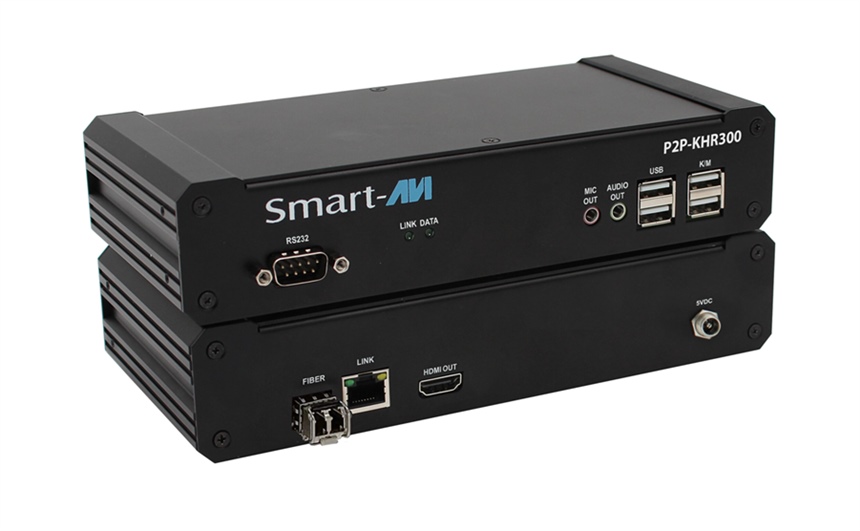

P2P-KHR300 HDMI KVM-Over-IP Extender / Matrix Switch

Description:
HDMI KVM-Over-IP Extender/Matrix Device – Single Head, CATx + Fiber Extend, control, and manage your HDMI-based workstation over IP with the P2P-KHR300. Supporting flexible Direct, Matrix, and SaviGate modes, the P2P-KHR300 adapts to your installation needs — from simple point-to-point extensions to full multi-user managed environments — over CATx or Fiber.

Features:
• SUPPORTS HDMI VIDEO UP TO4K @ 30HZ OR 1080P @ 60HZ
• TRANSPARENT USB 2.0 EXTENSIONFOR PERIPHERALS
• ANALOG AUDIO AND RS-232PASSTHROUGH
• SELECTABLE DIRECT, MATRIX, ANDSAVIGATE MODES VIA WEB INTERFACE
• SAVIGATE GATEWAY SUPPORT FORCENTRALIZED MANAGEMENT(SOLD SEPARATELY)
• UP TO 100M OVER CATX / 10KM OVERFIBER
• ULTRA-LOW LATENCY JPEG2000COMPRESSION
• PLUG-AND-PLAY INSTALLATION
• EDID LEARNING AND MANAGEMENT

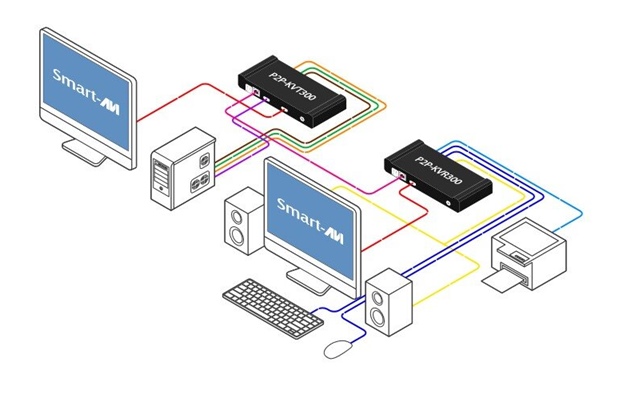

P2P-KHR300 Diagram

Specification:
Video (1) HDMI (female)
Max Resolution 1920 x 1080 @ 60 Hz
USB (4) USB Type A
Audio (2) Stereo 3.5 mm (female)
RS-232 DB9 (female)
Transmission RJ45 and/or SFP Fiber
Control LEDs
Power 5V DC, 2A
Dimensions 8.5” W x 4” L x 1.8” H
