RTL-7990000 - Rittal - Fan expansion kit for VX IT, TS IT - Additional Fan for Rittal Fan modules (SK. 7990.000) 7.7W - For RTL 5503 Fans

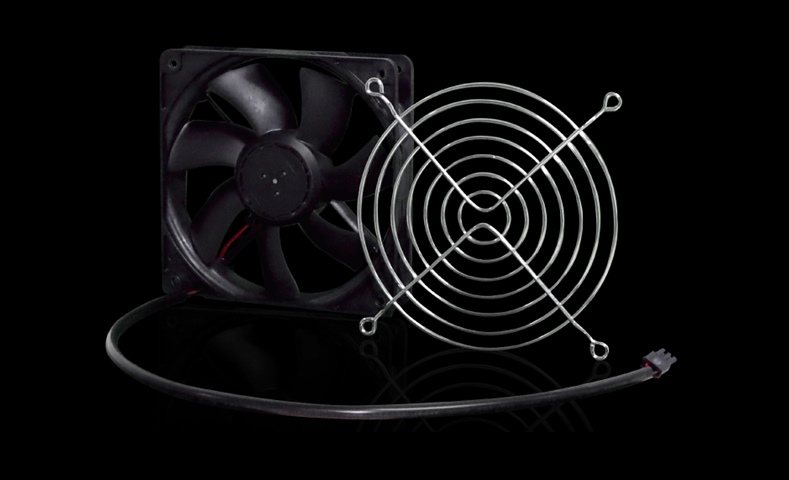

Rittal Fan Unit 7990.000 (For 5503 Fan Modules)

Description:
SK Fan expansion kit, speed-controlled, 192 m³/h unimpeded airflow, for fan modules, WHD:119x25x119 mm, RAL 9005

Features:

Specification:
SK 7990.000
Design
Without roof plate
Product description
Fan expansion kit with integral speed control for installing in fan modules 5503.xxx.
Benefits
Complete, ready-to-connect solution
Energy-efficient speed control with preset characteristic curve
International approvals and multi-voltage capability for worldwide use
Material
Plastic
Colour
RAL 9005
Supply includes
Fan
Protective grille
Assembly parts
Installation and Short User's Guide
Air throughput (at operating point)
150 m³/h
Rated operating voltage
24 V (DC)
Rated current max.
At 50 Hz: 0.32 A
At 60 Hz: 0.32 A
Dimensions
Width: 119 mm
Height: 25 mm
Depth: 119 mm
IP protection category to IEC 60 529
IP 20
Speed
100 %
Note
Reduction in the specified air throughput to 150 m³/h at 25 Pa counterpressure
Noise level (at operating point)
44 dB(A)
Operating temperature range
5 °C...55 °C
Power consumption
7.7 W
Packs of
1 pc(s).
Net weight
0.3 kg
Gross weight
0.308 kg
Customs tariff number
84149000
EAN
4028177966345
ETIM 9
EC000320
ECLASS 8.0
27180716
Product description
SK Fan expansion kit, speed-controlled, 192 m³/h unimpeded airflow, for fan modules, WHD:119x25x119 mm, RAL 9005
