AVM-C1100-USR AdderView Matrix C1100 User Station -FOR (ADDERView MATRIX C1000 SYSTEM)

Description:
A single video head User Station (USR) for extension and matrix of video, audio and USB over a single cable.

Part of the ADDERView Matrix C1000 Series, the ADDERView Matrix C1100 USR enables the use of standard infrastructure to extend the user away from the computer equipment and infrastructure.


This system works with 3 layer components.

1/ The User Station ( AVM-C1100-USR )
2/ The compatible network switch 12 port or 30 port Netgear preconfigured to Adder matrix
( AVM-C12-XX & AVM-C30-XX )

3/ The C110 Matrix Transmitter
( AVM-C110-CAM-DP & AVM-C110-CAM-HM )

Features:
-Fast Video and USB Switching
The switching time between computers is less than one second to provide a high quality user experience. Switching can be achieved by using an On Screen Display (OSD) or by Hotkeys from a keyboard or external device.

-Unlimited Extension Distances
Extension distance is not limited to a single 100 meter cable length. If you need to extend further, the unit is fitted with an SFP cage to accept fiber optic transceivers for much greater distances.

-Perfect Digital Video in Real-Time
Using a spatially-lossless encoding system, with 1:1 pixel mapping, the device provides pixel-perfect and color accurate video with no artifacts. The digital video received is the same as the digital video leaving the remote computer.

-USB 2.0 with Class Control
Supports USB devices including graphics tablets, jog shuttles, joysticks, card readers and 3D explorers, alongside mass storage devices. The system can disable types of devices, meaning there is no need to physically block USB ports.

-Digital Audio
The system can deliver stereo audio (bi-directional) or embedded video standard stereo audio (uni- directional).

-Sharing and Collaboration
The system allows any user station to connect to any computer access module so different users can share a resource at the same time.


- 2k Resolution Support
The ADDERView Matrix C1100 supports up to 2560 x 1600@60 Hz resolutions and can also support 1920 x 1200 up to 120Hz

- EDID Management
Intelligent EDID management allows either the true characteristics of the monitor to be passed back to the computer or a fixed one. This ensures perfect video display without additional configuration.


- Plug and Play
ADDERView Matrix devices are delivered in a zero config state so you can plug them in and start working on them straight away. There is no need for drivers or software to be installed.

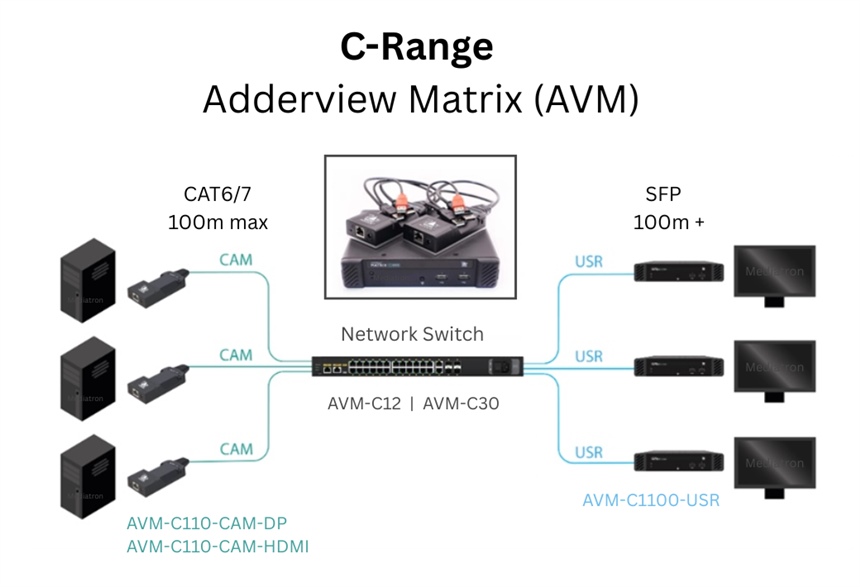

General all parts system setup example (ADDERView MATRIX C1000 SYSTEM)
PMFL1024

Specification:
Video Information (For 1 Screen)
Maximum Resolution 2560 x 1600
Frame Rate 60
Colour Depth 8 bpc

Console Connections
USB A 4× 2.0 True Emulation, Full Speed, Low Speed, High Speed
Full Size DisplayPort × 1.1 (dual mode)

Link Ports
8p8c (RJ45) 1×
SFP 1×

Audio Connections
Audio Type Analog/Digital
Channels 2
Audio In Ports 1×
Audio Out Ports 1× 3.5mm jack
Audio Direction Bi-directional
Size (bit) 16
Speed (kHz) 48

Network
Bandwidth 1GbE
10/100 Support No


Physical Design
Construction Material Robust metal construction
U size 1
Width 186mm / 7.3in
Height 39mm / 1.5in
Depth 150mm / 5.90in
Weight 1.1kg / 2.4lb

What's in the Box?
1× ADDERView Matrix C1100 User Station
1× PSU-IEC-12VDC-1.5A: Mains power supply
1× IEC PSU cable of country code
