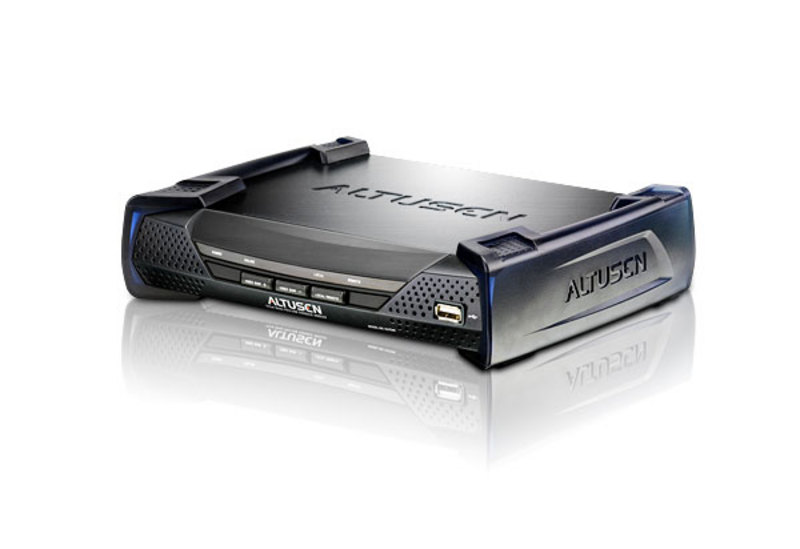

KA7240 - Aten - PS/2-USB VGA Virtual Media Console Module * DISCONTINUED *

KA7240

Description:
See Replacement: KA7240S

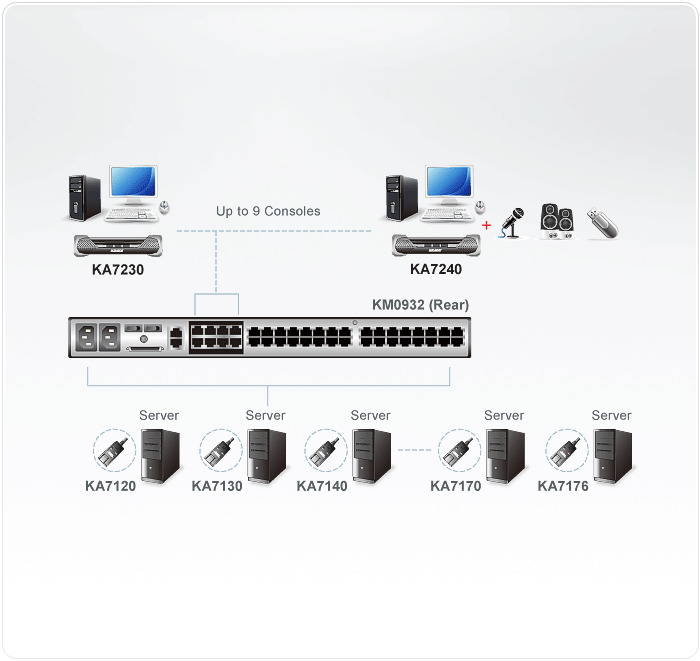

The KA7240 Console Module offers secure access to the servers in a Matrix KVM Switch (KM0932/KM0532) from a PS/2 or USB console (monitor, keyboard, and mouse) up to 300 meters away. It provides an extra computer port for integration with a computer workstation, enabling users to seamlessly switch between the local computer and the servers in the Matrix KVM Switch. The KA7240 also features an intuitive graphical user interface, the Graphical OSD, with easy-to-use menus and icons that enable easy access and efficient management.

KA7240 has a built-in RS-232 port. Administrators can establish a serial terminal login to the Console Module in order to control the KVM port access for all consoles connected to switch – any console can be assigned to access any KVM port from a single interface point. In addition, an automatic skew compensation function corrects color phase and timing errors that occur over long distance transmissions.

Features:
• One Combo Graphic Console Module can control a local computer and a matrix KVM switch (KM0932/KM0532)

• Virtual Media Support

• Audio enabled

• Enhanced video quality via automatic skew compensation support

• Supports PS/2 and USB keyboards and mice(Console)

• Switch between your workstation computer and the matrix KVM switch

• Graphical OSD-intuitive, easy-to-use graphical On Screen Display to manage servers

• RS-232 port login support permits an administrator to control the KVM port access for all consoles connected to switch – any console can be assigned to access any KVM port from a single interface point

• Connects to matrix KVM switch via Cat 5e/6 cable

• Superior video quality – 1280 x 1024 @ 60 Hz for up to 300 m

• Manual video gain control for fine tuning

• Convenient computer selection via intuitive hotkey combinations or graphical OSD menus

• Firmware upgradeable

SETUP:

Specification:
Package Contents

1x KA7240 Console Module with stacking brackets
1x Custom KVM Cable (VGA, PS/2, Audio; 1.8m/6ft)
1x Power Adapter
1x RS-232 Cable (DB-9; 1.8m/6ft)
1x Mounting Kit
1x User Instructions

Virtual Media PS/2-USB Console Module

Computer Connections 1
Console Connections 1
Port Selection GUI, Hotkey

Connectors

Console Ports 2 x USB Type A Female (White)
1 x 6-pin Mini-DIN Female (Purple)
1 x 6-pin Mini-DIN Female (Green)
1 x HDB-15 Female (Blue)
Local Computer KVM Port 1 x SPHD-17 Female (Yellow)
Virtual Media 1 x USB Type A Female (White)
KVM Switch Ports 2 x RJ-45 Female
RS-232 1 x DB-9 Male (Black)
Audio 2 x Mini Stereo Jack Female (Green)
2 x Mini Stereo Jack Female (Pink)
Power 1 x DC Jack

Switches

Firmware Upgrade 1 x Slide
Video Gain Adjustment 2 x Pushbutton
Selection 1 x Pushbutton (Local/Remote)

LEDs

Power 1 (Blue)
Online 1 (Green)
Local 1 (Orange)
Remote 1 (Orange)

Emulation

Keyboard / Mouse PS/2; USB (PC, Sun, Mac)
Video 1280 x 1024 @ 60Hz (300m max.)
Scan Interval 1-240 Seconds
Power Consumption DC5.3V:6.12W:48BTU

Environmental

Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing

Physical Properties
Housing - Metal
Weight 1.26 kg ( 2.78 lb )
Dimensions (L x W x H) 22.71 x 17.15 x 5.48 cm (8.94 x 6.75 x 2.16 in.)

Note - For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Click here for further information
