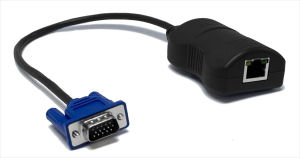

ALPV150R AdderLink LPV150 Line Powered VGA over Cat-X cable Extender Receiver only 150Mtr

ALPV150R receiver only pmmc511

Description:
ALPV150R AdderLink LPV150 Line Powered VGA over Cat-X cable Extender Receiver only


The AdderLink LPV has been designed to deliver stunning results at a really attractive price, making it the perfect introduction to professional digital signage.

The AdderLink LPV Digital Signage Extender is possibly the easiest to install point to point extender available today. In addition to its simplicity the LPV Extender also delivers fantastic quality video up to 150 meters away.

Choosing your signage technology
There are many types of signage technology available on the market, from small players which sit alongside the screen to streaming MPEG around large bandwidth networks. Adder's solution is based upon reliability, quality and simplicity. The three qualities most requested by professional users.

Delivery of content over CATx cable is by far the simplest and the safest way to deliver your message, requiring minimal disruption to install. CATx cable can be routed invisibly to your screens.

Line extension solutions allow you to keep everything tidy and are straight forward to use.

"Years of talking with potential signage users large and small has revealed a significant proportion that simply do not have the funding to utilise project integration specialists, but who would still benefit from the obvious advantages digital signage has to offer. As such, we set about developing a fit and forget signage solution that really is a breeze to install and get going"

Features:
Video Performance
Full HD 1080p, 1080i and 720p with distance up to 150 meters.

Line Power
To help reduce cable clutter, the Adder Link LPV has been designed to be powered by a USB port on your computer and this power is also transmitted alongside the video over CA Tx cable, in turn powering your receiver unit.

Absolute simplicity
Getting into professional Digital Signage has never been so easy - simply plug the transmitters VGA port into your computer and plug in the USB port, then plug the receiver unit into your screen. Finally, connect the two units together with a length of CATx cable and you are done. Now start delivering your message to customers, visitors, staff or whoever you wish.

Advanced DDC Protocol
Unless an extender actively supports DDC (Dynamic Data Channel), some well-known high performance video cards cannot be used at high resolution. The AdderLink LPV fully supports DDC.

Fit and Forget
Adder Digital Signage products are the professional choice because they give you the ability to deliver, fit and forget installations. The LPV is no exception. Rigorously tested in Adder's technology labs, so you can buy with real confidence.

Targeted Messages
Targeting messages to specific areas of your business is perfectly simple too. By using a multihead graphics card, you can deliver different messages around your installation with minimal additional investment.

ALPV150 setup - Single line

Specification:
Receiver Unit Only Supplied:

Video Resolution
Up to 1080p HD video resolution including 1080i & 720p

Extension Distance
Up to 150m

O/S Compatibility
Operating system independent

Connectors (local / remote)
Local end: VGA, USB (for power) RJ45 Remote end: VGA

Physical
Transmitter: High impact injection moulding: 45mm (w), 63 mm (l), 21mm (d) -
excluding cables. Receiver: High impact injection moulding: 45mm (w), 63 mm (l), 21mm (d) -
excluding cables.

Power
Local interface powered, via USB.

Operating temperature
0-40 Deg C

Approvals
CE, FCC

Order Codes
ALPV150P (pair)
ALPV150R (receiver only)
ALPV150T (transmitter only)

Features Video Performance
Full HD 1080p, 1080i and 720p with distance up to 150 meters.
