PX-4307 3PH Wye, 400V AC, 32A, 12 outlets: IEC C-19, plug: IEC 60309 32A 3P+N+PE, 22.2kVA, Zero U vertical PDU, Ethernet, serial and sensor connections ( PX-4000 Range BTO Model )

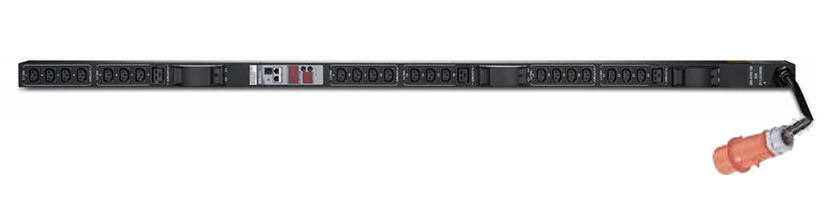

Range example only model PX-4530 3Phase,
actual size spec. model may vary from picture

Description:
The Raritan PX-4000 family of high-quality rack power distribution units (PDUs) offers real-time remote unit-level and individual outlet-level power monitoring of current (amps), voltage, power (kVA, kW), power factor and energy consumption (kWh) with ISO/IEC +/- 1% billing-grade accuracy. The PX-4000 also supports Raritanís plug-and-play environmental sensors. Users can define thresholds and receive alerts when thresholds are crossed for both power and environmental events.

The PX-4000 series is available in Zero U (vertical mount) and 1U and 2U (horizontal mount) form factors with a wide variety of NEMA, IEC and other plugs and receptacles, including models which support high power distribution such as 400V. Precise power information can be monitored, and the PX-4000 configured, via a user-friendly Web browser GUI or command line interface. Power information is also displayed at the PDU locally. Security is ensured with up to 256-bit encryption, strong passwords and advanced authorization options, including permissions, LDAP/S and Active Directory. Plus the PX-4000 series is fully compatible with Raritan's Power IQ energy management software solutions.

Features:
Power Metering and Monitoring

- Remote power monitoring, metering and rich data collection including current (amps), voltage, power (kVA, kW) and energy consumption (kWh)
- LED and alarms for unbalanced loads based on user-adjustable thresholds
- Capable of ISO/IEC +/- 1% billing-grade accuracy real-time power monitoring and metering, down to individual outlets for some models
- User-adjustable power data sampling and buffering

Power Management, Security and Remote Access

- Alerts via SNMP, e-mail and syslog from individual outlets, units, lines and circuit breakers when user-adjustable thresholds are exceeded
- Standards based polling, configuration and alerting with encryption via SNMP v1, v2, v3 support, SETs, GETs and TRAPs
- Ethernet, serial, USB-A, USB-B and sensor connections
- Directory services support providing advanced authorization options, including permissions, LDAP/S, RADIUS and Active Directoryģ. 256-bit AES encryption and strong passwords
- Remote access via Web and CLI. Supports HTTP, HTTPS, SSH and Telnet
- Compatible with Raritanís Power IQ

Environmental Monitoring

- Environment-monitoring-ready intelligent rack PDUs with optional plug-and-play environmental sensors
- Alerts based on user-defined environmental thresholds
- LED indication if sensor is plugged in and detected

3Phase PIC guideline picture only

Specification:
PX-4307

3PH Wye, 400V AC, 32A,
12 outlets: IEC C-19,
plug: IEC 60309 32A 3P+N+PE, 22.2kVA,
Zero U vertical PDU,
Ethernet, serial and sensor connections
