Partner Manufacturers - Product Information

PDB-C138C194V-16A PDU 16A Vertical Outlets 8x C13, 4 x C19 LSOH to 3 Mtr IND309 16A LSOH / made LSZH Cable

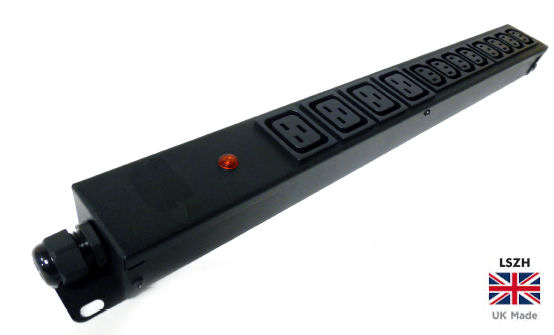

General style picture only.
Actual unit would have different outlet configuration.

Description:
0U Vertical Mixed 8 x C13 Socket and 4 x C19 Socket PDU with 16Amp IND309 Commando Plug Input.

Made with LSOH External and internal cabling

High quality, hand built and UK Manufactured.
Slimline body for better rack fitment

This PDU range is superb quality, hand built and UK Manufactured

Features:
C13 Socket Outputs X 8
C19 Socket Outputs X 4


0 U Rackmount Vertical PDU

Slim line style IEC for side space saving

With 16Amp IND309 Commando plug Power Input on Lead
Input Connector 16 Amp Rated

16A Feed Connector IND309 Plug

Specification:
· Manufactured using 8 x C13 & 4 x C19 sockets
· Set in black powder coated metal work
· Earth bonded for total safety, compliant with RoHS certification.
· Green illuminated double pole switch c/w switch cover
· Manufactured to BS5733, with UL, CSA & VDE approved components.
· Current rating 16A Operating voltage 250V Ac.
· Earth bonded for total safety, compliant with RoHS certification and WEEE standards

· 16Amp IND309 Feed Power input Connector
